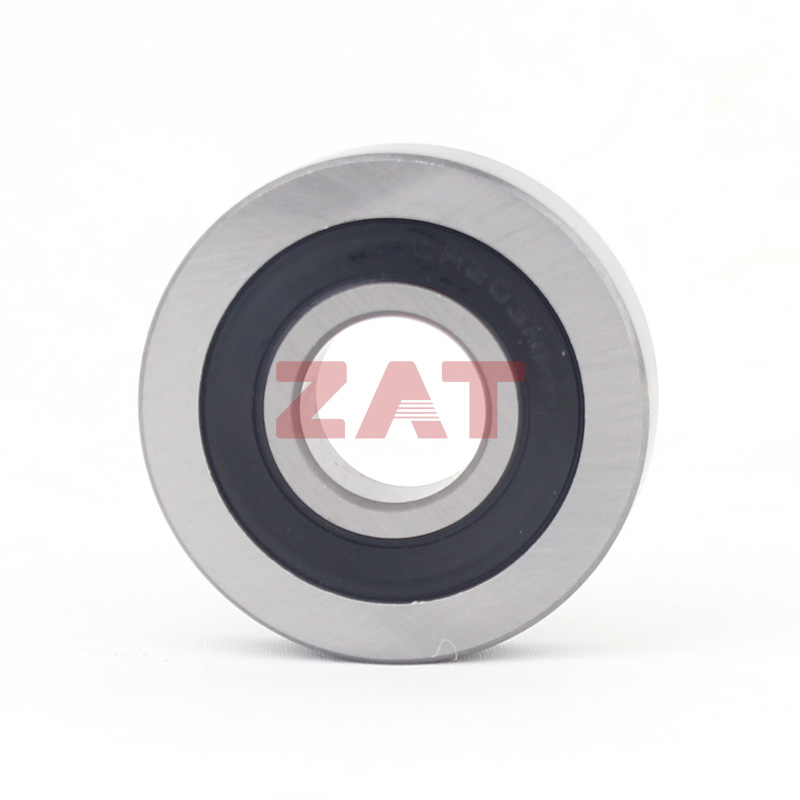

  • LR200-2RS Series roller bearing
  • LR200-2RS Series roller bearing

    This series of roller bearings generates negligible frictional heat during operation and exhibits minimal wear, making them particularly suitable for high-speed and high-temperature applications. They are widely employed in sectors such as steel metallurgy, mining, petrochemicals, and papermaking.

    Low resistance, high efficiency

    High load capacity

    Maintenance-free

    High precision

    Extended service life


    • 0.00
      0.00
Product Description

This series of roller bearings generates negligible frictional heat during operation and exhibits minimal wear, making them particularly suitable for high-speed and high-temperature applications. They are widely employed in sectors such as steel metallurgy, mining, petrochemicals, and papermaking.

Low resistance, high efficiency

High load capacity

Maintenance-free

High precision

Extended service life



Product Description

Roller bearings generate negligible frictional heat during operation with minimal wear, making them particularly suitable for high-speed and high-temperature applications. They can be widely deployed in harsh environments such as steel metallurgy, mining, petrochemicals, papermaking, cement manufacturing, and other engineering machinery sectors. Featuring sealed end caps, they effectively shield internal components from external damage, extending bearing service life and enabling prolonged operation under complex conditions including high temperatures, pressures, and heavy loads.


Product Features

- High-precision design precisely constrains axial displacement.

- Maintenance-free design featuring pre-filled long-life grease and sealed construction to prevent contamination.

- Flexible installation with strong error compensation, eliminating the need for high-precision mounting references.

- Load capacity 2–3 times that of standard bearings, with impact resistance and fatigue life enhanced by over 50%.

Low friction and high speed capability, with minimal temperature rise and negligible noise during high-speed operation.


Product Specifications


ModeldDBModeldDB
LR200-2RS10329LR200NPPU10329
LR201-2RS123510LR201NPPU123510
LR202-2RS154011LR202NPPU154011
LR203-2RS174712LR203NPPU174712
LR204-2RS205214LR204NPPU205214
LR205-2RS256215LR205NPPU256215
LR206-2RS307216LR206NPPU307216
LR207-2RS358017LR207NPPU358017
LR208-2RS408518LR208NPPU408518
LR209-2RS459019LR209NPPU459019
LR5200-2RS103214LR5200NPPU103214
LR5201-2RS123515.9LR5201NPPU123515.9
LR5202-2RS154015.9LR5202NPPU154015.9
LR5203-2RS174717.5LR5203NPPU174717.5
LR5204-2RS205220.6LR5204NPPU205220.6
LR5205-2RS256220.6LR5205NPPU256220.6
LR5206-2RS307223.8LR5206NPPU307223.8
LR5207-2RS358027LR5207NPPU358027
LR5208-2RS408530.2LR5208NPPU408530.2
LR5000-2RS102812LR5000NPPU102812
LR5001-2RS123012LR5001NPPU123012
LR5002-2RS153513LR5002NPPU153513
LR5003-2RS174014LR5003NPPU174014
LR5004-2RS204716LR5004NPPU204716
LR5005-2RS255216LR5005NPPU255216
LR5006-2RS306219LR5006NPPU306219
LR5007-2RS356820LR5007NPPU356820
LR5008-2RS407521LR5008NPPU407521
LR5300-2RS10

LR5300NPPU10

LR5301-2RS124219LR5301NPPU124219
LR5302-2RS154719LR5302NPPU154719
LR5303-2RS175222.2LR5303NPPU175222.2
LR5304-2RS206222.2LR5304NPPU206222.2
LR5305-2RS257225.4LR5305NPPU257225.4
LR5306-2RS308030.2LR5306NPPU308030.2
LR5307-2RS359034.9LR5307NPPU359034.9
LR5308-2RS4010036.5LR5308NPPU4010036.5
